Pure light output combined with a lens and a gear-driven adjustment slide: this lets you set a sharply defined light spot of 1–12 mm in diameter. It enables a level of accentuation that was not possible before, for example when damage or material defects need to be documented. Applications include optical inspection, microscopy, photography and cultural heritage.
Features
540,000 lux
Illuminance at 100 mm distance and 12 mm spot size
5,600 K
Daylight-white color temperature for true-to-life color reproduction
1 mm Spot
Smallest light spot for precise illumination
Technical Data
- Illuminance: 540,000 lux (100 mm distance, 12 mm spot)
- Light spot: 1–12 mm
- Dimensions: 120 × 45 × 45 mm
- Weight: 250 g
Scope of Delivery

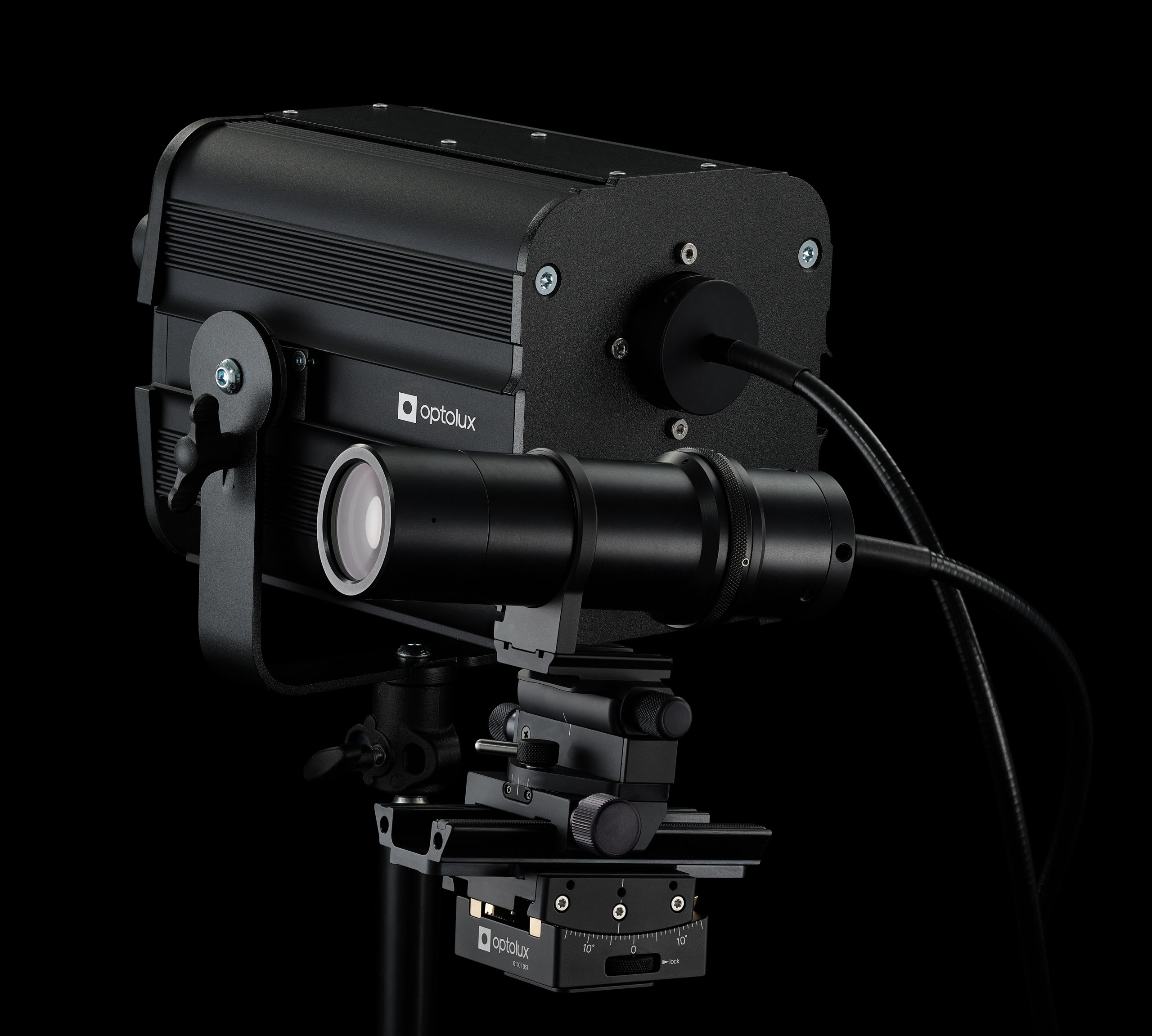

optolux FOCUS
Requires a SOLIS – to extend an existing SOLIS.
Lens
Goniometer
Light Guide
optolux SOLIS FOCUS
Complete set with SOLIS light source and power supply.
SOLIS Light Source
Power cable
Lens
Goniometer
Light Guide
Case
